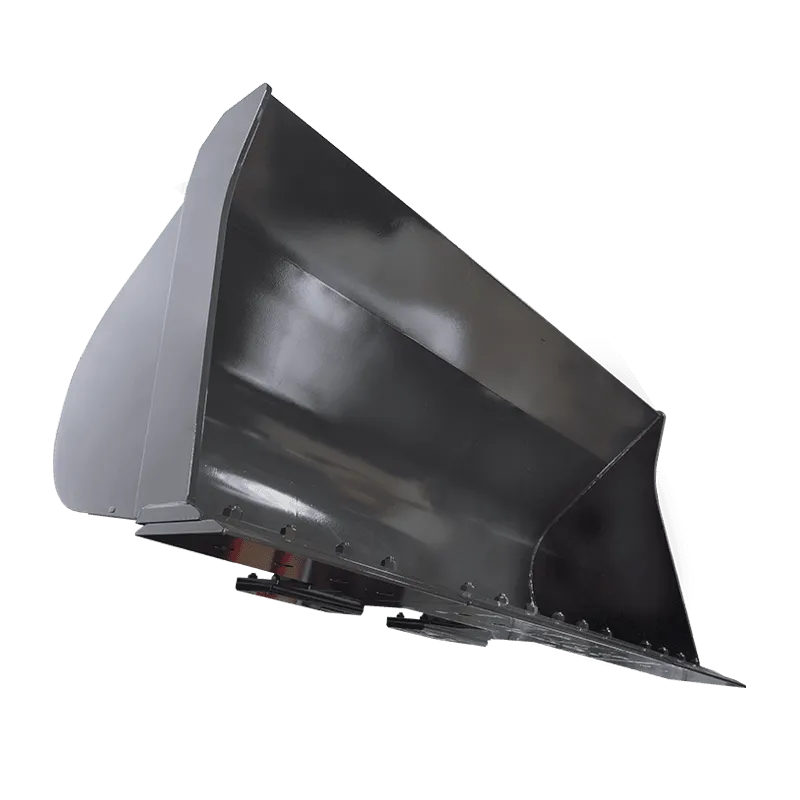

GENERAL PURPOSE WHEEL LOADER FOR JRB^® STYLE COUPLER

FEATURES

Compatible with popular JRB ® coupler and John Deere ® coupler styles
Flat top edge allows you to visually level the bucket
100 KSI yield material in critical wear areas of bucket, 50 KSI yield material in all other areas
1‑piece moldboard on 1.5 to 3.75 cubic yard buckets
1‑piece bridge on all buckets for added strength
Replaceable skid shoes and bolt‑on cutting edges (BOCEs)
New slope bottom design features 5% raised dump angle and better roll and fill
Intended for use in dirt, gravel, loose materials up to 3,000 lbs per cubic yard

ALL SPECIFICATIONS ARE FOR 3 PIECE OEM STYLE EDGE. CALLS FOR SPEIFICATIONS ON 4 PIECE OEM STYLE EDGE

CLASS 2

CLASS 3

MAKE	MODEL
CASE	621DXT, 621E, 621E XR, 621F, 621G
CATERPILLAR	628Hx, 926M, 928H, 930H, 930M, 938H, IT38H
DAEWOO / DOOSAN	DL200, DL200-5, DL200TC-5, DL220-5, DL250, DL250-5
DRESSTA	520E, 520EH, 520EH HL
GEHL	750
HYUNDAI	HL540-9, HL757-9, HL760-9, HL940, HL955, HL955 XT, HL960
JCB	426HT, 427HT, 427ZX
JOHN DEERE	524K HL, 524K HL WH, 524K WH, 524K Z-Bar, 524K-II, 524K-II HL, 524K-II Z-Bar, 544K HL, 544K HL Powerllel, 544K HL WH, 544K WH, 544K Z-Bar, 544K-II HL, 544K-II Powerllel, 544K-II Z-Bar
KAWASAKI	62Z7, 65TMV-2, 65VZ-2, 67TM7
KOMATSU	WA180-3, WA200-5, WA200-7, WA200-8, WA200PZ-6, WA270-7, WA270-8
LIEBHERR	L514, L524 2plus1, L526, L528 2plus1
NEW HOLLAD	W130, W130B, W130C, W130TC
TEREX	SKL260H, SKL863, TXL200-2
VOLVO	L60D, L60E, L60F, L60H, L70E, L70F, L70H

CLASS 5

MAKE	MODEL
CASE	721E, 721E XR, 721E XT, 721F, 721G
CATERPILLAR	930M, 938H, 938M, 950GC, 950H, 950M, 962H, 962L, IT38H
DAEWOO / DOOSAN	DL250, DL250-5, DL250TC-5, DL280-5
DRESSTA	530E
HYUNDAI	HL740-9, HL757-9, HL760-9, HL955, HL960, HL960 HD, HL960 XT
JCB	436HT, 436ZX, 437 HT
JOHN DEERE	624K HL, 624K Powerllell, 624K WH, 624K Z-Bar, 624K-II, 624K-II HL, 624K-II Powerllel, 624K-II TC, 624K-II Z-Bar
KAWASAKI	67Z7, 70TMV-2, 70Z7, 70Z7 T4F, 70ZV-2
KOMATSU	WA250-3, WA250-5, WA250-6, WA250PZ-6, WA320-3, WA320-5, WA320-6, WA320-7, WA320-8, WA320PZ-6
LIEBHERR	L524 2plus1, L528 2plus1, L538, L538 2plus1, l542 2plus1, L546, L550 Xpower
NEW HOLLAD	LW170, LW170B, LW170TC, W170C
TEREX	SKL873, TL260, TXL250-1, TXL250-2
VOLVO	L60E, L60F WH, L90E, L90F, L90H

CLASS 6

MAKE	MODEL
CASE	821E, 821E XR, 821F, 821G
CATERPILLAR	950GC, 950H, 950M, 962H, 962L, 962M, 966M XE, 972M XE, IT62H
DAEWOO / DOOSAN	DL300, DL300-5, DL350-5
DRESSTA	530E
HYUNDAI	HL757-9, HL760-9, HL770-9, HL960, HL960 HD, HL960XT, HL965, HL965XT
JCB	456HT, 456ZX, 457HT
JOHN DEERE	644K HL, 644K HL WH, 644K Powerllel, 644K WH, 644K Z-Bar, 724K HL, 724K HL WH, 724K WH, 724K Z-Bar
KAWASAKI	80Z7, 80Z7 T4F, 80ZV-2, 85Z7, 85ZV-2
KOMATSU	WA380-3, WA380-5, WA380-6, WA380-7, WA380-8
LIEBHERR	L524 2plus1, L528 2plus1, L538 2plus1, L542 2plus1, L550 2plus2, L550 Xpower Z-bar, L556 Xpower Z-bar
NEW HOLLAD	W190, W190B, W190C
TEREX	TXL300-1, TXL300-2
VOLVO	L110E, L110H, L120E, L120H, L120LB, L90E, L90F WH
